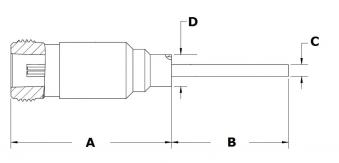

Fig.1

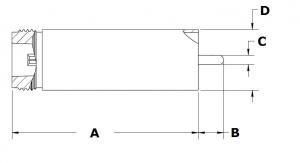

Fig.2
Fig.3
Type | Flange | N. pin | Impedence | Fig. | A | B | C | D | P/number |
---|---|---|---|---|---|---|---|---|---|
Single ended | Weld | 1 | non-constant | 1 | 49 | 7 | 2.38 | 15.79 | 1-CX-0219 |
Single ended | Weld | 1 | 50 Ohm | 2 | 42 | 30 | 3.04 | 8.20 | |
Double ended | Weld | 1 | non-constant | 3 | 13 | 50 | 25.27 | 1-CX-0220 |
Voltage: | 500V DC |
---|---|
Current: | 3 Amps |
Impedence: | See table |
Material: | |
Shell: | Stainless steel |
Pin: | Stainless steel |
Insulation: | Alumina ceramic |
Vacuum range UHV | 1x10-10 mbar |
Temperature range: | -200°C to 450°C |
Air side connector: | -65°C to 165°C |
Air side connector included
In-vacuum connectors & cables available
Custom configuration available upon request. Please contact our sales office.
