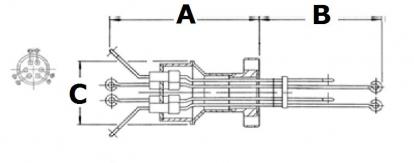

Fig.1

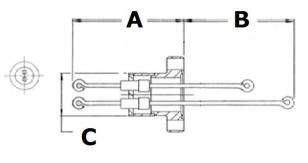

Fig.2

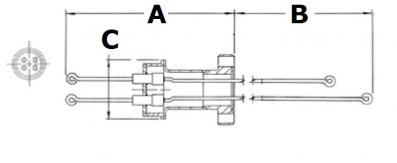

Fig.3

Technical information
Pairs	Type	Flange	Fig.	A	B	C	P/number

1	R-S	CF16	1	53.3	101.6	19.0	1-TC-0360
1	N	CF16	1	53.3	101.6	19.0
1	T	CF16	1	53.3	101.6	19.0	1-TC-0361

2	R-S	CF16	2	72.4	101.6	28.4	1-TC-0363
2	N	CF16	2	72.4	101.6	28.4
2	T	CF16	2	72.4	101.6	28.4	1-TC-0364

3	R-S	CF16	3	71.4	101.6	31.7	1-TC-0369
3	N	CF16	3	71.4	101.6	31.7
3	T	CF16	3	71.4	101.6	31.7	1-TC-0370

Thermocouple table click here

Air & vacuum side connectors included

Custom versions available on request
