Linear Push-Pull

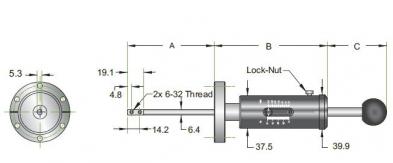

Fig.1 Linear Push Pull on CF flange

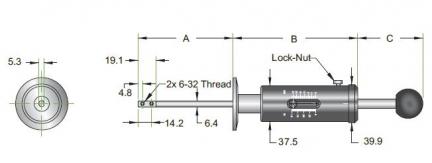

Fig.2 Linear Push Pull on ISO-K flange
| Size | Fig. | Material | Travel | A | B | C | P/number |
|---|---|---|---|---|---|---|---|
| CF16 | 1 | Stainless steel | 25 mm | 90.2-115.6 | 127 | 66.5-91.9 | 5-PP-0401 |
| CF40 | 1 | Stainless steel | 25 mm | 90.2-115.6 | 127 | 66.5-91.9 | 5-PP-0402 |
| CF16 | 1 | Stainless steel | 50 mm | 90.2-141 | 162.6 | 63.5-114.3 | 5-PP-0403 |
| CF40 | 1 | Stainless steel | 50 mm | 90.2-141 | 162.6 | 63.5-114.3 | 5-PP-0404 |
| KF16 | 2 | Stainless steel | 25 mm | 88.9-114.3 | 128.5 | 66.5-91.9 | 5-PP-0405 |
| KF40 | 2 | Stainless steel | 25 mm | 91.4-116.8 | 126 | 66.5-91.9 | 5-PP-0406 |
| KF16 | 2 | Stainless steel | 50 mm | 88.9-139.7 | 164.1 | 63.5-114.3 | 5-PP-0407 |
| KF40 | 2 | Stainless steel | 50 mm | 91.4-142.2 | 161.5 | 63.5-114.3 | 5-PP-0408 |
| Material: | |
|---|---|
| Body: | Stainless steel |
| Housing: | Anodized aluminium |
| Bellow: | AM-350 Edge welded |
| Vacuum: | UHV/HV: 10-11 / 10-8 mbar |
| Temperature: | 250°C |
| Axial load: | 2.3 kg max |
| Lateral load: | 2.3 kg @ 50mm extention max |
| Resolution - Linear scale: | 0.62 mm |
Custom design available upon request, please contact our sales office.
