Standard viewports
Standard viewport

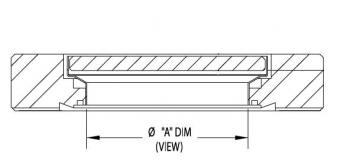

Viewport

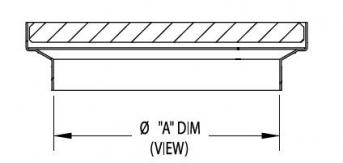

Spinning weldable
| Size | Glass type | Flange type | Flange material | View diameter | Part number |
|---|---|---|---|---|---|
| CF16 | 7056 Kodial Glass | Conflat | AISI 304L | 16 | 3-ST-0050 |
| CF40 | 7056 Kodial Glass | Conflat | AISI 304L | 38 | 3-ST-0051 |
| CF63 | 7056 Kodial Glass | Conflat | AISI 304L | 65 | 3-ST-0052 |
| CF100 | 7056 Kodial Glass | Conflat | AISI 304L | 90 | 3-ST-0053 |
| CF160 | 7056 Kodial Glass | Conflat | AISI 304L | 135 | 3-ST-0054 |
| CF200 | 7056 Kodial Glass | Conflat | AISI 304L | 135 | 3-ST-0055 |
| KF16 | 7056 Kodial Glass | ISO-K | AISI 304L | 16 | 3-ST-0056 |
| KF25 | 7056 Kodial Glass | ISO-K | AISI 304L | 16 | 3-ST-0057 |
| KF40 | 7056 Kodial Glass | ISO-K | AISI 304L | 34 | 3-ST-0058 |
| KF50 | 7056 Kodial Glass | ISO-K | AISI 304L | 34 | 3-ST-0059 |
| LF63 | 7056 Kodial Glass | ISO-K | AISI 304L | 50 | 3-ST-0060 |
| LF100 | 7056 Kodial Glass | ISO-K | AISI 304L | 68 | 3-ST-0061 |
| LF160 | 7056 Kodial Glass | ISO-K | AISI 304L | 98 | 3-ST-0062 |
| DN40 | 7056 Kodial Glass | Spinning (weldable) | Kovar | 34 | S3-ST-5002 |
| DN63 | 7056 Kodial Glass | Spinning (weldable) | Kovar | 65 | S3-ST-5005 |
| DN100 | 7056 Kodial Glass | Spinning (weldable) | Kovar | 90 | S3-ST-5001 |
| DN160 | 7056 Kodial Glass | Spinning (weldable) | Kovar | 135 | S3-ST-5003 |
| Material: | Kovar / Kodial 7056 glass |
|---|---|
| Temperature: | CF flange: 400°C / ISO flanges: 150°C |
| Vacuum: | UHV |
| Transmission: | 300 - 2500 nm |
For wavelength click here
Annealed gaskets should be used for CF types
AISI 316LN flanges available upon request
US sizes available upon request
For spinning weldable viewports DN160, 200 & 250 please use cod S3.ST-5003
