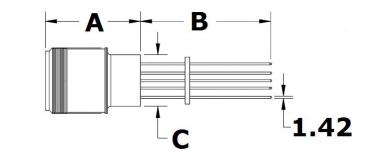

Fig.1

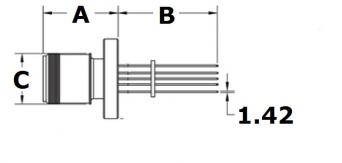

Fig.2

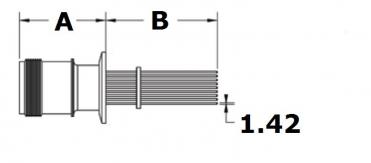

Fig.3

Technical information
Pairs	Type	Flange	Fig.	A	B	C

2	E	Weld	1	61.7	79.2	19.0
2	J	Weld	1	61.7	79.2	19.0
2	K	Weld	1	61.7	79.2	19.0
3	E	Weld	1	61.7	79.2	19.0
3	J	Weld	1	61.7	79.2	19.0
3	K	Weld	1	61.7	79.2	19.0
5	E	Weld	1	61.7	79.2	19.0
5	J	Weld	1	61.7	79.2	19.0
5	K	Weld	1	61.7	79.2	19.0
10	E	Weld	1	64.3	88.9	34.8
10	J	Weld	1	64.3	88.9	34.8
10	K	Weld	1	64.3	88.9	34.8

2		CF16	2	68.6	68.6	31.8
2		CF16	2	68.6	68.6	31.8
2		CF16	2	68.6	68.6	31.8
2		CF40	2	57.2	79.8	31.8
2		CF40	2	57.2	79.8	31.8
2		CF40	2	57.2	79.8	31.8
3		CF16	2	68.6	68.6	31.8
3		CF16	2	68.6	68.6	31.8
3		CF16	2	68.6	68.6	31.8
3		CF40	2	57.2	79.8	31.8
3		CF40	2	57.2	79.8	31.8
3		CF40	2	57.2	79.8	31.8
5		CF16	2	68.6	68.6	31.8
5		CF16	2	68.6	68.6	31.8
5		CF16	2	68.6	68.6	31.8
5		CF40	2	57.2	79.8	31.8
5		CF40	2	57.2	79.8	31.8
5		CF40	2	57.2	79.8	31.8
10		CF40	2	65.3	88.9	44.5
10		CF40	2	65.3	88.9	44.5
10		CF40	2	65.3	88.9	44.5

2		KF16	3	68.6	68.6
2		KF16	3	68.6	68.6
2		KF16	3	68.6	68.6
2		KF40	3	55.9	81.0
2		KF40	3	55.9	81.0
2		KF40	3	55.9	81.0
3		KF16	3	68.6	68.6
3		KF16	3	68.6	68.6
3		KF16	3	68.6	68.6
3		KF40	3	55.9	81.0
3		KF40	3	55.9	81.0
3		KF40	3	55.9	81.0
5		KF16	3	68.6	68.6
5		KF16	3	68.6	68.6
5		KF16	3	68.6	68.6
5		KF40	3	55.9	81.0
5		KF40	3	55.9	81.0
5		KF40	3	55.9	81.0
10		KF40	3	64.3	88.9
10		KF40	3	64.3	88.9
10		KF40	3	64.3	88.9

Thermocouple table click here

Air side connectors included

Custom versions available on request
