Fig.1

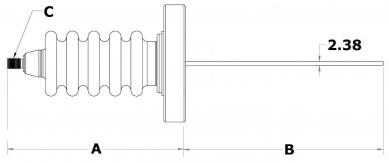

Fig.2

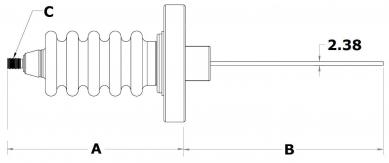

Fig.3

Technical information
N. pin	Volts	Amps	Conductor	Flange	Fig.	A	B	D	P/number

1	20kV	3	Stn. Stl.	Weld	1	78	148	38.10	1-PW-0615
1	20kV	50	Copper	Weld	1	78	148	38.10	1-PW-0903

1	25kV	3	Stn. Stl.	Weld	1	91	135	38.10	1-PW-0616
1	25kV	50	Copper	Weld	1	91	135	38.10	1-PW-0904

1	30kV	3	Stn. Stl.	Weld	1	103	122	38.10	1-PW-0617
1	30kV	50	Copper	Weld	1	103	122	38.10	1-PW-0905
1	30kV	15	Nickel	Weld	1	103	122	38.10	1-PW-0906

1	20kV	3	Stn. Stl.	CF40	2	79	146		1-PW-0612
1	20kV	50	Copper	CF40	2	79	146		1-PW-0900

1	25kV	3	Stn. Stl.	CF40	2	92	134		1-PW-0613
1	25kV	50	Copper	CF40	2	79	146		1-PW-0901

1	30kV	3	Stn. Stl.	CF40	3	79	146		1-PW-0614
1	30kV	50	Copper	CF40	3	79	146		1-PW-0902

Custom lengths and designs available upon request. Please contact our sales office.
