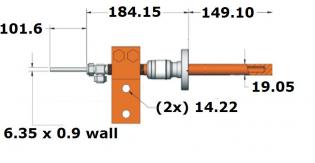

Fig.1

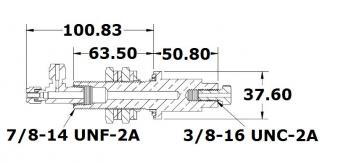

Fig.2
Fig.3
N. pin | Volts | Amps | Conductor | Flange | Fig. | P/number |
---|---|---|---|---|---|---|
1 | 8000 | 1000 | Copper | CF40 | 1 | 1-PW-0712 |
1 | 50 | 1000 | Copper | Baseplate 1" | 2 | 1-PW-0824 |
Material: | |
---|---|
Flange: | Stainless steel |
Shell: | Stainless steel |
Insulation: | Alumina ceramic |
Vacuum range (UHV/HV): | 1x10-8 mbar / 1x10-10 mbar |
Temperature: | |
CF mounted FT | -55 to 450°C |
Baseplate mounted | -20 to 150°C |
Custom lengths and designs available upon request. Please contact our sales office.
