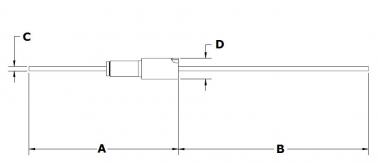

Fig.1

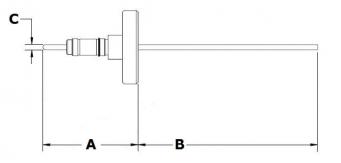

Fig.2

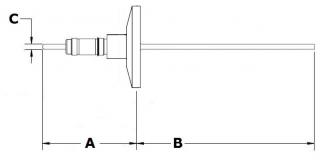

Fig.3

Technical information
N. pin	Volts	Conductor	Flange	Fig.	A	B	C	D	P/number

1	5kV	Copper	Weld	1	80	105	6.35	15.79	1-PW-0677
1	5kV	Nickel	Weld	1	80	105	6.35	15.79	1-PW-0678
1	5kV	Stn. Stl.	Weld	1	80	105	6.35	15.79	1-PW-0679
1	8kV	Copper	Weld	1	98	86	19.05	28.44	1-PW-0675
1	8kV	Copper	Weld	1	98	86	12.70	28.44
1	8kV	Copper	Weld	1	80	104	9.65	18.97	1-PW-0676

1	5kV	Copper	CF16	2	68	116	6.35		1-PW-0682
1	5kV	Nickel	CF16	2	68	116	6.35		1-PW-0683
1	5kV	Stn. Stl.	CF16	2	68	116	6.35		1-PW-0684
1	5kV	Copper	CF40	2	81	103	6.35		1-PW-0685
1	5kV	Nickel	CF40	2	81	103	6.35		1-PW-0686
1	5kV	Stn. Stl.	CF40	2	81	105	6.35		1-PW-0687
1	8kV	Copper	CF40	2	97	86	19.05		1-PW-0680
1	8kV	Copper	CF40	2	97	86	12.70
1	8kV	Copper	CF16	2	68	116	9.65		1-PW-0681
2	5kV	Copper	CF40	2	81	105	6.35		1-PW-0688
2	5kV	Nickel	CF40	2	81	103	6.35		1-PW-0689
2	5kV	Stn. Stl.	CF40	2	81	103	6.35		1-PW-0690
3	5kV	Copper	CF40	2	81	103	6.35		1-PW-0691
3	5kV	Nickel	CF40	2	81	105	6.35		1-PW-0692
3	5kV	Stn. Stl.	CF40	2	81	105	6.35		1-PW-0693
4	5kV	Copper	CF40	2	81	105	6.35		1-PW-0694
4	5kV	Nickel	CF40	2	81	105	6.35		1-PW-0695
4	5kV	Stn. Stl.	CF40	2	81	105	6.35		1-PW-0696

1	5kV	Copper	KF16	3	66	118	6.35		1-PW-0697
1	5kV	Nickel	KF16	3	66	118	6.35		1-PW-0698
1	5kV	Stn. Stl.	KF16	3	66	118	6.35		1-PW-0699
1	5kV	Copper	KF40	3	80	105	6.35		1-PW-0700
1	5kV	Nickel	KF40	3	80	105	6.35		1-PW-0701
1	5kV	Stn. Stl.	KF40	3	80	105	6.35		1-PW-0702
1	8kV	Copper	KF40	3	97	86	19.05		1-PW-0825
1	8kV	Copper	KF40	3	97	86	12.70
1	8kV	Copper	KF40	3	80	104	9.65
2	5kV	Copper	KF40	3	79	105	6.35		1-PW-0703
2	5kV	Nickel	KF40	3	79	105	6.35		1-PW-0704
2	5kV	Stn. Stl.	KF40	3	79	105	6.35		1-PW-0705
3	5kV	Copper	KF40	3	79	105	6.35		1-PW-0706
3	5kV	Nickel	KF40	3	79	105	6.35		1-PW-0707
3	5kV	Stn. Stl.	KF40	3	79	105	6.35		1-PW-0708
4	5kV	Copper	KF50	3	79	105	6.35		1-PW-0709
4	5kV	Nickel	KF50	3	79	105	6.35		1-PW-0710
4	5kV	Stn. Stl.	KF50	3	79	105	6.35		1-PW-0711

Custom lengths and designs available upon request. Please contact our sales office.
