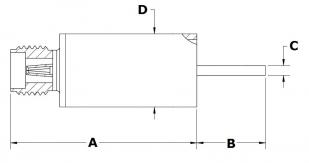

Fig.1
Fig.2
Fig.3
Type | Flange | N. pin | Conductor | Fig. | A | B | C | D | P/number |
---|---|---|---|---|---|---|---|---|---|
Single ended | Weld | 1 | 304 Stn. Stl. | 1 | 16 | 4 | 1 | 7.82 | 1-CX-0236 |
Single ended | CF16 | 1 | 304 Stn. Stl. | 2 | 17 | 3 | 1 | 1-CX-0227 | |
Single ended | KF16 | 1 | 304 Stn. Stl. | 3 | 16 | 4 | 0.76 | 1-CX-0239 |
Voltage | 500 VDC |
---|---|
Current | 2 Amps |
Impedence | Non constant |
Material | |
Flanges | 304 Stainless steel |
Shell | 304 Stainless steel |
Pins | Molybdenum |
Insulation | Alumina ceramic |
Vacuum range UHV/HV | 1x10-10 / 1x10-8 mbar |
Temperature range | |
CF & weldable FT | -200 to 450°C |
Iso-K mounted FT | -20 to 150°C |
Air side connector | -65 to 165°C |
Air side connector included
In-vacuum connectors & cables available
Baseplate version available upon request
Custom configuration available upon request. Please contact our sales office.
