Fig.1

Fig.2

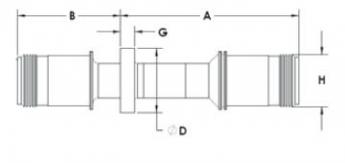

Fig.3

Technical information
N. pin	Fig.	Amps*	A	B	Flange size	G	H	P/number

4	1	28	61	87	CF40			1-MP-0032
6	1	36	61	87	CF40			1-MP-0033
10	1	50	61	87	CF40			1-MP-0034
20	1	75	72	89	CF63			1-MP-0035
35	1	100	65	97	CF63			1-MP-0036
35	1	100	65	97	CF100			1-MP-0136

4	2	28	87	86	KF40			1-MP-0137
4	2	28	87	89	KF50			1-MP-0138
6	2	36	87	86	KF40			1-MP-0139
6	2	36	89	89	KF50			1-MP-0140
10	2	50	86	86	KF40			1-MP-0141
10	2	50	89	89	KF50			1-MP-0142

4	3	28	60	89	Weld	8	35	1-MP-0084
6	3	36	60	89	Weld	8	35	1-MP-0085
10	3	50	60	89	Weld	8	35	1-MP-0086
20	3	75	71	89	Weld	9	63	1-MP-0087
35	3	100	63	99	Weld	9	63	1-MP-0088

* Max amperage all pins loaded

Air & vacuum side connectors included
