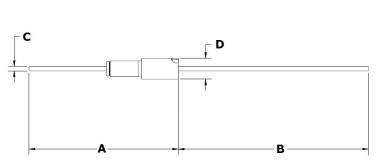

Fig.1

Fig.2

Fig.3

Technical information
N. pin	Volts DC	Amps	Conductor	Fig.	A	B	C	D	P/number

1	5000	25	Copper	1	47	55	1.27	6.27	1-PW-0513
1	5000	8	Nickel	1	47	55	1.27	6.27	1-PW-0514
1	5000	1	Stn. Stl.	1	47	55	1.27	6.27	1-PW-0515
1	5000	50	Copper	1	57	127	2.38	11.04	1-PW-0486
1	5000	15	Nickel	1	57	127	2.33	11.04	1-PW-0856
1	5000	100	Copper	1	59	125	4.06	12.57	1-PW-0623
1	5000	30	Nickel	1	59	125	4.06	12.57	1-PW-0624
1	5000	180	Copper	1	80	105	6.35	15.79	1-PW-0620
1	5000	55	Nickel	1	80	105	6.35	15.79	1-PW-0621
1	5000	7	Stn. Stl.	1	80	105	6.35	15.79	1-PW-0622
-	5000	-		2	43	7.87	2.08	11.04	1-PW-5005

2	5000	25	Copper	3	47	54	1.27	18.97
2	5000	8	Nickel	3	47	54	1.27	18.97
2	5000	1	Stn. Stl.	3	47	54	1.27	18.97

4	5000	25	Copper	3	47	54	1.27	18.97
4	5000	8	Nickel	3	47	54	1.27	18.97
4	5000	1	Stn. Stl.	3	47	54	1.27	18.97	1-PW-0854

Custom lengths and designs available upon request. Please contact our sales office.
