Power 12kV DC

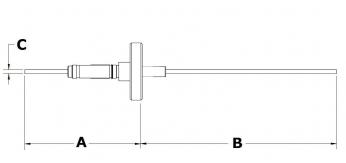

Fig.1

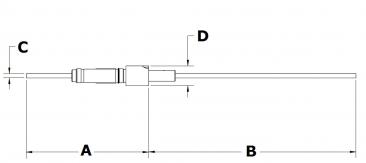

Fig.2

Fig.3

Technical information
N. pin Amps Conductor Flange Fig. A B C D P/number
1 180 Copper Weld 1 91 93 6.35 17.37 1-PW-0625
1 55 Nickel Weld 1 91 93 6.35 17.37 1-PW-0626
1 7 Stn. Stl. Weld 1 91 93 6.35 17.37 1-PW-0627
1 180 Copper CF16 2 83 102 6.35 1-PW-0645
1 55 Nickel CF16 2 83 102 6.35 1-PW-0646
1 7 Stn. Stl. CF16 2 83 102 6.35 1-PW-0647
1 180 Copper CF40 2 92 82 6.35 1-PW-0648
1 55 Nickel CF40 2 92 82 6.35 1-PW-0649
1 7 Stn. Stl. CF40 2 92 82 6.35 1-PW-0650
2 180 Copper CF40 3 92 82 6.35 1-PW-0651
2 55 Nickel CF40 3 92 82 6.35 1-PW-0652
2 7 Stn. Stl. CF40 3 92 82 6.35 1-PW-0653
Specifications
Voltage: 12 kV DC
Current: up to 180 Amps
Material:
Flange: Stainless steel
Shell: Stainless steel
Insulation: Alumina ceramic
Vacuum range UHV 1x10-10 mbar
Temperature: -55 to 450°C

Custom lengths and designs available upon request. Please contact our sales office.
