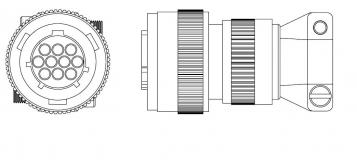

Fig.1

Technical information
N. pole	Material	Contact type	Connection	P/number

10	Stn. Stl.	Crimp	Bayonet	1-CC-6040
19	Stn. Stl.	Crimp	Bayonet	1-CC-6041
32	Stn. Stl.	Crimp	Bayonet	1-CC-6042

10	Stn. Stl.	Solder	Bayonet	1-CC-6046
19	Stn. Stl.	Solder	Bayonet	1-CC-6047
32	Stn. Stl.	Solder	Bayonet	S1-CC-5203

Specifications
Material:	Stainless steel, plastic inside
Current:	up to 5 Amps
Voltage:	1kV DC
Temperature range:
Crimp style:	-55°C to 200°C
Solder style:	-55°C to 125°C

Connectors are sold with gold plated crimp or solder contacts
