ISO-K (KF) Flanges

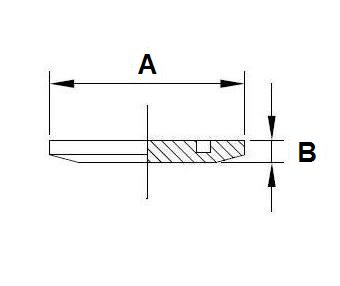

Fig.1 ISO-K (KF) blank flange

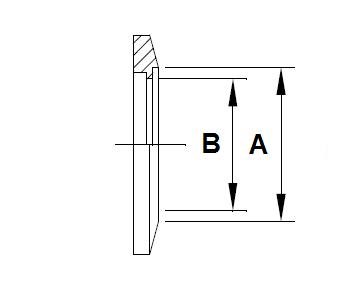

Fig.2 ISO-K (KF) weldable flange
Fig.3 Short & long flanges
| Size | Type | Material | Fig. | A | B | C | Part number |
|---|---|---|---|---|---|---|---|
| KF16 | Blank | Stainless Steel | 1 | 30 | 5 | 2-KF-1170 | |
| KF25 | Blank | Stainless Steel | 1 | 40 | 5 | 2-KF-1171 | |
| KF40 | Blank | Stainless Steel | 1 | 55 | 5 | 2-KF-1172 | |
| KF50 | Blank | Stainless Steel | 1 | 75 | 5 | 2-KF-1173 | |
| KF16 | Blank | Aluminum | 1 | 30 | 5 | 2-KF-1576 | |
| KF25 | Blank | Aluminum | 1 | 40 | 5 | 2-KF-1577 | |
| KF40 | Blank | Aluminum | 1 | 55 | 5 | 2-KF-1177 | |
| KF50 | Blank | Aluminum | 1 | 75 | 5 | 2-KF-1178 | |
| KF16 | Weld | Stainless Steel | 2 | 20 | 16 | 2-KF-1578 | |
| KF25 | Weld | Stainless Steel | 2 | 28 | 24 | 2-KF-1579 | |
| KF40 | Weld | Stainless Steel | 2 | 45 | 41 | 2-KF-1580 | |
| KF50 | Weld | Stainless Steel | 2 | 57 | 50 | 2-KF-1581 | |
| KF16 | Short | Stainless Steel | 3 | 20 | 16 | 30 | 2-KF-1561 |
| KF25 | Short | Stainless Steel | 3 | 28 | 24 | 30 | 2-KF-1562 |
| KF40 | Short | Stainless Steel | 3 | 45 | 41 | 30 | 2-KF-1563 |
| KF50 | Short | Stainless Steel | 3 | 57 | 50 | 30 | 2-KF-1564 |
| KF16 | Long | Stainless Steel | 3 | 20 | 16 | 70 | 2-KF-1551 |
| KF25 | Long | Stainless Steel | 3 | 28 | 24 | 70 | 2-KF-1543 |
| KF40 | Long | Stainless Steel | 3 | 45 | 41 | 70 | 2-KF-1552 |
| KF50 | Long | Stainless Steel | 3 | 57 | 50 | 70 | 2-KF-1553 |
| KF16 | PVC hose | Aluminum | 3 | 18 | 15 | 30 | 2-KF-1595 |
| KF25 | PVC hose | Aluminum | 3 | 27 | 24 | 30 | 2-KF-1549 |
| KF40 | PVC hose | Aluminum | 3 | 43 | 39 | 30 | 2-KF-1596 |
| Material: | Aisi 304 Stainless steel or Aluminium |
|---|---|
| Temperature: | -20°C to 180°C |
| Vacuum: | 10-8 mbar |
For full details please click here
Custom configuration upon request
Custom material upon request
