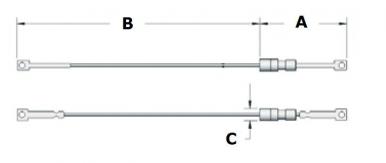

Fig.1

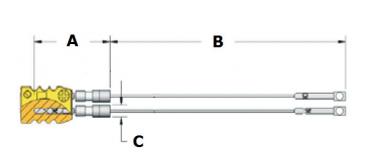

Fig. 2
N. pin | Type | Air connections | Vacuum connections | Flange | Fig. | A | B | C | P/number |
---|---|---|---|---|---|---|---|---|---|
1 | K | Screw & nut | Screw & nut | Weld | 1 | 45.46 | 127 | 6.27 | 1-TC-0600 |
1 | C | Screw & nut | Screw & nut | Weld | 1 | 45.46 | 127 | 6.27 | 1-TC-0601 |
1 | J | Screw & nut | Screw & nut | Weld | 1 | 45.46 | 127 | 6.27 | 1-TC-0602 |
1 | E | Screw & nut | Screw & nut | Weld | 1 | 45.46 | 127 | 6.27 | 1-TC-0603 |
1 | K | Spade | Screw & nut | Weld | 2 | 39.11 | 127 | 6.27 | S1-TC-0311 |
1 | C | Spade | Screw & nut | Weld | 2 | 39.11 | 127 | 6.27 | 1-TC-0500 |
1 | J | Spade | Screw & nut | Weld | 2 | 39.11 | 127 | 6.27 | 1-TC-0604 |
1 | E | Spade | Screw & nut | Weld | 2 | 39.11 | 127 | 6.27 | 1-TC-0605 |
Voltage: | Milli Volts |
---|---|
Current: | Milli Amps |
Materials: | |
Flange: | Stainless steel |
Pin: | See options |
Insulation: | Alumina ceramic |
Temperature range: | |
Feedthrough: | -100°C to 450°C |
Air side: | -65°C to 125°C |
Thermocouple table click here
Air & vacuum side connectors included
Custom versions available on request
