Extended range optic viewports
CF style

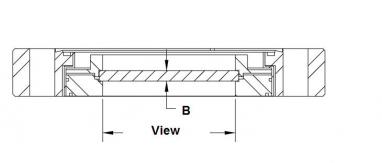

| Material | AR coating | View diameter | Size | B | Part number |
|---|---|---|---|---|---|
| Zinc Selenide | - | 23 | CF40 | 2.5 | 3-ZS-0134 |
| Calcium Fluoride | - | 23 | CF40 | 2.5 | 3-CF-0122 |
| Magnesium fluoride | - | 23 | CF40 | 2.5 | 3-MF-0120 |
| Zinc Selenide | 8-12 microns | 23 | CF40 | 2.5 | 3-ZS-0134-C |
| Zinc Selenide | - | 48 | CF63 | 3.8 | 3-ZS-0135 |
| Calcium Fluoride | - | 48 | CF63 | 3.8 | 3-CF-0123 |
| Magnesium fluoride | - | 48 | CF63 | 3.8 | 3-MF-0121 |
| Zinc Selenide | 8-12 Microns | 48 | CF63 | 3.8 | 3-ZS-0136 |
| Vacuum: | 10-11 mbar |
|---|---|
| Temperature: | -100°C to 200°C (150°C for coated VP) |
| Thermal gradient: | 25°C/min |

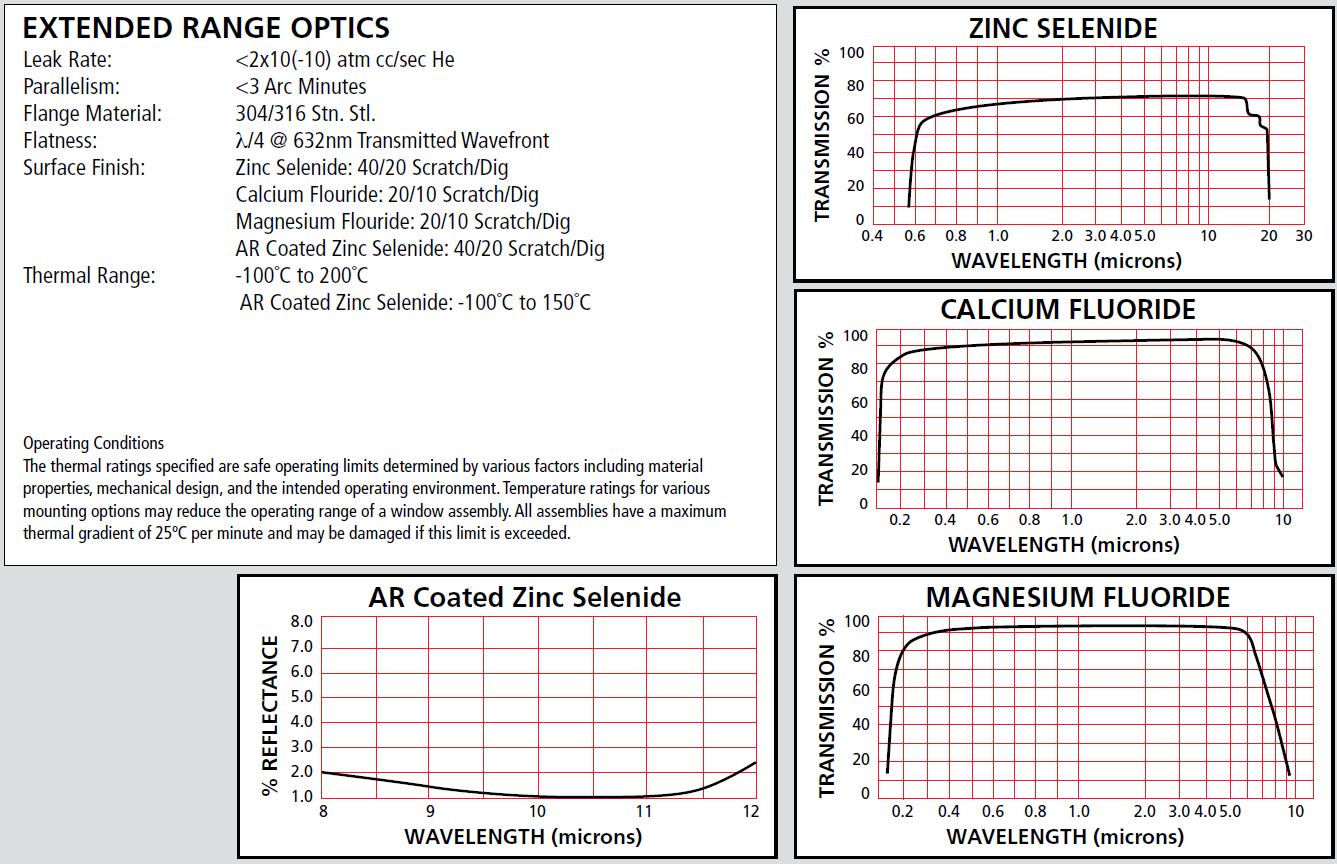

Extended range specifications & wavelengths here
Annealed copper gaskets should be used with CF types
AISI 316LN flanges available upon request
