Power RF 8kV - 10kW

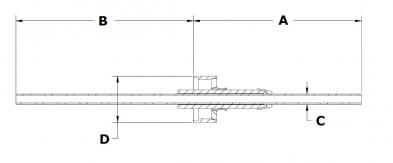

Fig.1

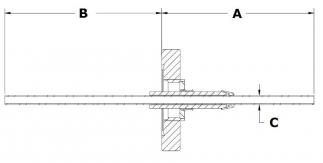

Fig.2

Fig.3

Technical information
N. pin Flange Fig. A B C D P/number
1 Weld 1 103 109 6.35x0.9 wall 28.44 1-RF-0804
1 CF40 2 105 108 6.35x0.9 wall 1-RF-0800
1 KF40 3 103 109 6.35x0.9 wall 1-RF-0802
2 Weld 1 107 106 6.35x0.9 wall 28.44 1-RF-0805
2 CF40 2 109 104 6.35x0.9 wall 1-RF-0801
2 KF40 3 107 106 6.35x0.9 wall 1-RF-0803
Specifications
Material:
Flange: Stainless steel
Shell: Stainless steel
Insulation: Alumina ceramic
Vacuum range (UHV/HV): 1x10-8 mbar / 1x10-10 mbar
Temperature range:
CF & weldable FT -55 to 450°C
Iso-K mounted FT -20 to 150°C

Custom lengths and designs available upon request. Please contact our sales office.
