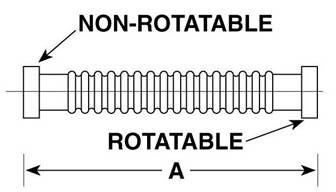

CF Flexible Bellows
Flexible metal hose
| Size | Material | A | Part number |
|---|---|---|---|
| CF16 | 316L/321 | 250 | 2-CF-0537 |
| CF40 | 316L/321 | 250 | 2-CF-0538 |
| CF63 | 316L/321 | 250 | 2-CF-0539 |
| CF16 | 316L/321 | 500 | 2-CF-0540 |
| CF40 | 316L/321 | 500 | 2-CF-0541 |
| CF63 | 316L/321 | 500 | 2-CF-0542 |
| CF16 | 316L/321 | 750 | 2-CF-0543 |
| CF40 | 316L/321 | 750 | 2-CF-0544 |
| CF63 | 316L/321 | 750 | 2-CF-0545 |
| CF16 | 316L/321 | 1000 | 2-CF-0546 |
| CF40 | 316L/321 | 1000 | 2-CF-0547 |
| CF63 | 316L/321 | 1000 | 2-CF-0548 |
| Material: | AISI 316L / 321 |
|---|---|
| Temperature: | -200°C to 450°C |
| Vacuum: | 10-13 mbar |
Custom length available, please ask. (maximum one piece length 2.5 m)
AISI 316LN ESR Forged available upon request
US sizes available upon request
