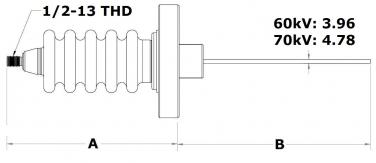

Fig.1

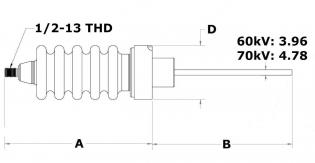

Fig.2
N. pin | Volts | Amps | Conductor | Flange | Fig. | A | B | D | P/number |
---|---|---|---|---|---|---|---|---|---|
1 | 60kV | 3 | Stn. Stl. | Weld | 1 | 199 | 117 | 82.55 | 1-PW-1821 |
1 | 60kV | 3 | Stn. Stl. | CF63 | 2 | 197 | 118 | 1-PW-1822 | |
1 | 70kV | 9 | Stn. Stl. | Weld | 1 | 191 | 134 | 63.37 | 1-PW-1823 |
1 | 70kV | 9 | Stn. Stl. | CF63 | 2 | 202 | 123 | 1-PW-1824 |
Voltage: | 60kV to 70kV DC |
---|---|
Current: | up to 9 Amps |
Material: | |
Flange: | Stainless steel |
Shell: | Stainless steel |
Insulation: | Alumina ceramic |
Vacuum range UHV | 1x10-10 mbar |
Temperature range: | -55 to 450°C |
Custom lengths and designs available upon request. Please contact our sales office.
