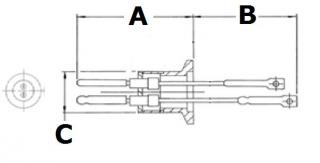

Fig.1

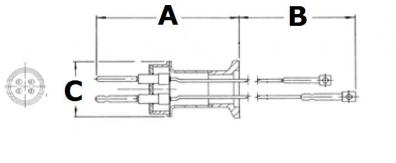

Fig.2

Fig.3

Technical information
Pairs	Type	Flange	Fig.	A	B	C	P/number

1	C	KF16	1	47.0	101.6	19.0	1-TC-0304
1	E	KF16	1	47.0	101.6	19.0	1-TC-0305
1	J	KF16	1	47.0	101.6	19.0	1-TC-0306
1	K	KF16	1	47.0	101.6	19.0	1-TC-0307

2	C	KF16	2	67.0	101.6	28,4	1-TC-0316
2	E	KF16	2	67.0	101.6	28.4	1-TC-0317
2	J	KF16	2	67.0	101.6	28.4	1-TC-0318
2	K	KF16	2	67.0	101.6	28.4	1-TC-0319

3	C	KF16	3	70.6	101.6	31.7	1-TC-0328
3	E	KF16	3	70.6	101.6	31.7	1-TC-0329
3	J	KF16	3	70.6	101.6	31.7	1-TC-0330
3	K	KF16	3	70.6	101.6	31.7	1-TC-0331

Thermocouple table click here

Air & vacuum side connectors included

Custom versions available on request
