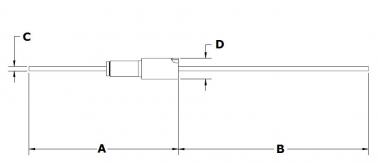

Fig.1

Fig.2

Feedthrough

Technical information
Volts DC	N. pin	Amps	Conductor	Fig.	A	B	C	D	P/number

500	1	8	Moly	1	28	25	0.81	3.91	1-PW-0500
500	1	12	Copper	1	28	25	0.81	3.91	1-PW-0501
500	1	4	Nickel	1	28	25	0.81	3.91	1-PW-0502
500	1	1	Stn. Stl.	1	28	25	0.81	3.91	1-PW-0503

500 *	1	12	Copper	1	28	25	0.81	3.91	1-PW-0504
500 *	1	2	Constantan	1	28	25	0.81	3.91	1-PW-0505
500 *	1	1	Stn. Stl	1	28	25	0.81	3.91	1-PW-0506

500	2	8	Moly	2	24	40	0.81	12.62	1-PW-0530
500	2	12	Copper	2	24	40	0.81	12.62	1-PW-0531
500	2	4	Nickel	2	24	40	0.81	12.62	1-PW-0533
500	2	1	Stn. Stl.	2	24	40	0.81	12.62	1-PW-0535

500	4	8	Moly	2	24	40	0.81	12.62	1-PW-0551
500	4	12	Copper	2	24	40	0.81	12.62	1-PW-0552
500	4	4	Nickel	2	24	40	0.81	12.62	1-PW-0554
500	4	1	Stn. Stl.	2	24	40	0.81	12.62	1-PW-0556

500	8	8	Moly	2	26	37	0.81	19.0	1-PW-0564
500	8	12	Copper	2	26	37	0.81	19.0	1-PW-0750
500	8	4	Nickel	2	26	37	0.81	19.0	1-PW-0565
500	8	1	Stn. Stl.	2	26	37	0.81	19.0	1-PW-0566

1000	1	20	Copper	1	25	57	1.27	6.27	1-PW-0507
1000	1	7	Nickel	1	25	57	1.27	6.27	1-PW-0508
1000	1	1	Stn. Stl.	1	25	57	1.27	6.27	1-PW-0509

1000	2	20	Copper	2	54	47	1.27	19.0	1-PW-0532
1000	2	7	Nickel	2	54	47	1.27	19.0	1-PW-0534
1000	2	1	Stn. Stl.	2	54	47	1.27	19.0	1-PW-0536

1000	4	20	Copper	2	54	47	1.27	19.0	1-PW-0553
1000	4	7	Nickel	2	54	47	1.27	19.0	1-PW-0555
1000	4	1	Stn. Stl.	2	54	47	1.27	19.0	1-PW-0557

1000	8	20	Copper	2	54	47	1.27	19.0
1000	8	7	Kovar	2	54	47	1.27	19.0
1000	8	-	Mickel tube	2	54	47	1.27	19.0
1000	8	-	Stn. Stl tube	2	54	47	1.27	19.0

* Indicates suitable for liquid helium applications (not weldable)

Custom lengths and designs available upon request. Please contact our sales office.
