High current quick connect feedthroughs

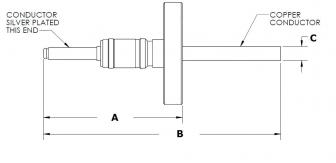

Fig.1

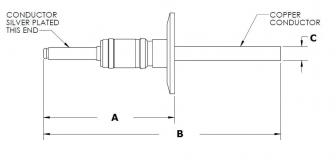

Fig.2

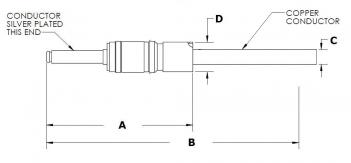

Fig.3
| N. pin | Flange | Voltage | Amps | Fig. | A | B | C | D | P/number |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CF16 | 2500 | 200 | 1 | 106 | 184 | 9.53 | 1-PW-1000 | |
| 1 | CF16 | 2500 | 70 | 1 | 57 | 184 | 3.91 | 1-PW-1001 | |
| 1 | CF16 | 2500 | 125 | 1 | 69 | 184 | 6.35 | 1-PW-1002 | |
| 1 | CF40 | 2500 | 70 | 1 | 57 | 184 | 3.91 | 1-PW-1003 | |
| 1 | CF40 | 2500 | 125 | 1 | 82 | 184 | 6.35 | 1-PW-1004 | |
| 1 | CF40 | 2500 | 200 | 1 | 94 | 184 | 9.53 | 1-PW-1005 | |
| 1 | KF16 | 2500 | 70 | 2 | 58 | 184 | 3.91 | 1-PW-1006 | |
| 1 | KF16 | 2500 | 125 | 2 | 84 | 184 | 6.35 | 1-PW-1007 | |
| 1 | KF16 | 2500 | 200 | 2 | 106 | 184 | 9.53 | 1-PW-1008 | |
| 1 | KF40 | 2500 | 70 | 2 | 58 | 184 | 3.91 | 1-PW-1009 | |
| 1 | KF40 | 2500 | 125 | 2 | 84 | 184 | 6.35 | 1-PW-1010 | |
| 1 | KF40 | 2500 | 200 | 2 | 93 | 184 | 9.53 | 1-PW-1011 | |
| 1 | Weld | 2500 | 70 | 3 | 56 | 184 | 3.91 | 12.57 | 1-PW-1012 |
| 1 | Weld | 2500 | 125 | 3 | 81 | 184 | 6.35 | 15.80 | 1-PW-1013 |
| 1 | Weld | 2500 | 200 | 3 | 93 | 184 | 9.53 | 18.97 | 1-PW-1014 |
| Material: | |
|---|---|
| Flange: | AISI 304L |
| Shell: | Stainless steel |
| Pin (air side) | Copper silver plated |
| Pin (vacuum side) | Copper |
| Temperature range: | |
| CF & weldable FT | -269°C to 450°C |
| Iso-K mounted FT | -25°C to 205°C |
| Connector: | -25°C to 125°C |
Air side connectors included. See drawing and specifications here
Vacuum side connectors and pins available
Special design and terminations available upon request. Please contact our sales office.
