Multipin 500V – 3.5Amp

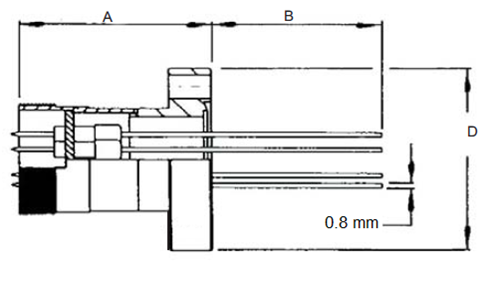

Fig.1
Fig.2
Fig.3
| N. pin | Fig. | Flange | A | B | C | D | E | W | Part number |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 1 | CF16 | 25.9 | 50 | 0.81 | 1-MP-0001 | |||
| 5 | 1 | CF16 | 34 | 40.2 | 0.81 | 1-MP-0002 | |||
| 5 | 1 | CF40 | 22.6 | 51.5 | 0.81 | 1-MP-0003 | |||
| 7 | 1 | CF16 | 34 | 40.2 | 0.81 | 1-MP-0004 | |||
| 7 | 1 | CF40 | 22.6 | 51.5 | 0.81 | 1-MP-0005 | |||
| 3 | 2 | KF16 | 27.2 | 48.5 | 0.81 | 1-MP-0006 | |||
| 3 | 2 | KF40 | 24.7 | 51 | 0.81 | 1-MP-0007 | |||
| 5 | 2 | KF16 | 34 | 40 | 0.81 | 1-MP-0008 | |||
| 5 | 2 | KF40 | 21.3 | 52.8 | 0.81 | 1-MP-0009 | |||
| 5 | 2 | KF50 | 21.3 | 52.8 | 0.81 | 1-MP-5013 | |||
| 7 | 2 | KF16 | 34 | 40 | 0.81 | 1-MP-0010 | |||
| 7 | 2 | KF40 | 21.3 | 58.2 | 0.81 | 1-MP-0011 | |||
| 7 | 2 | KF50 | 22.6 | 51.5 | 0.81 | 1-MP-5014 | |||
| 3 | 3 | Weld | 24.6 | 51 | 0.81 | 12.6 | 9.4 | 0.5 | 1-MP-0083 |
| 5 | 3 | Weld | 21.3 | 52.8 | 0.81 | 19 | 8.9 | 0.9 | 1-MP-0089 |
| 7 | 3 | Weld | 21.3 | 52.8 | 0.81 | 19 | 8.9 | 0.9 | 1-MP-0090 |
| Voltage | 500 VDC max |
|---|---|
| Current | 3.5 Amp per pin |
| Material | |
| Flanges | 304 stainless steel |
| Shell | Stainless steel |
| Pins | Molybdenum |
| Insulation | Alumina ceramic |
| Vacuum range UHV/HV | 1x10-10 mbar / 1x10-8 mbar |
| Temperature range | |
| CF mounted FT | -50 to 450°C |
| ISO KF mounted FT | -20 to 150°C |
| Air side connector | -50 to 65°C |
Air side connector included
