Sapphire Viewports
CF style

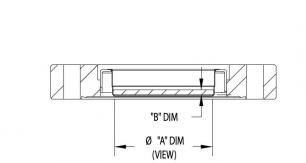

| Grade | Size | View diam | B | Part Number |
|---|---|---|---|---|
| UV | CF16 | 15mm | 1.6mm | 3-SA-0100 |
| UV | CF40 | 17mm | 2mm | 3-SA-0101 |
| UV | CF40 | 24mm | 2mm | 3-SA-0102 |
| UV | CF63 | 36mm | 2mm | 3-SA-0103 |
| UV | CF63 | 49mm | 2.4mm | 3-SA-0104 |
| UV | KF40 | 17mm | 2mm | 3-SA-0105 |
| UV | KF40 | 24mm | 2mm | 3-SA-0106 |
| DUV | CF40 | 24mm | 2mm | 3-SA-0116 |
| DUV | CF63 | 36mm | 2mm | 3-SA-0117 |
| DUV | CF63 | 49mm | 2.4mm | 3-SA-0118 |
| Vacuum: | 10-11 mbar |
|---|---|
| Temperature: | -100°C to 450°C |
| Thermal gradient: | 25°C/min |

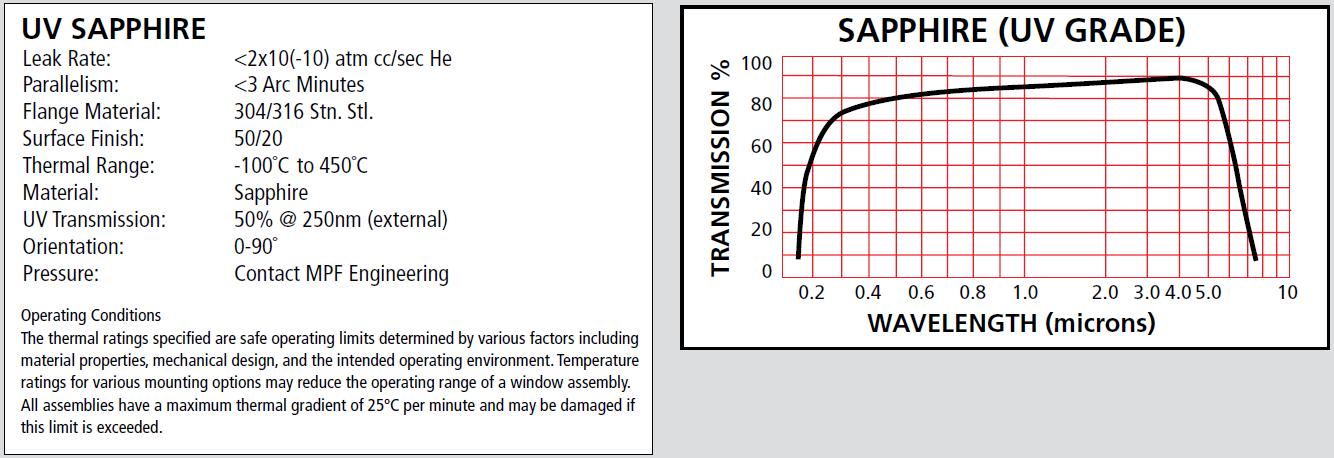

Sapphire specifications & wavelength here
Annealed copper gaskets should be used with CF types
AISI 316LN flanges available upon request
