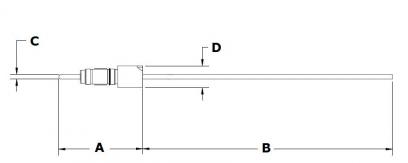

Fig.1

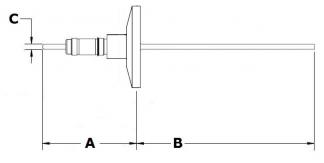

Fig.2

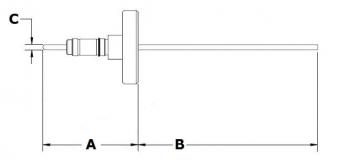

Fig.3

Technical information
N. pin	Amps	Conductor	Flange	Fig.	A	B	C	D	P/number

1	50	Copper	Weld	1	67	117	2.38	11.04	1-PW-0790
1	15	Nickel	Weld	1	67	117	2.33	11.04	1-PW-0791

1	50	Copper	CF16	2	67	117	2.38		1-PW-0792
1	15	Nickel	CF16	2	67	117	2.38		1-PW-0793
2	50	Copper	CF16	2	67	117	2.38		1-PW-0794
2	15	Nickel	CF16	2	67	117	2.38		1-PW-0795
2	50	Copper	CF40	2	67	117	2.38		1-PW-0796
2	15	Nickel	CF40	2	67	117	2.38		1-PW-0797
4	50	Copper	CF40	2	67	117	2.38		1-PW-0798
4	15	Nickel	CF40	2	67	117	2.38		1-PW-0799

1	50	Copper	KF16	3	57	125	2.38		1-PW-0800
1	15	Nickel	KF16	3	57	125	2.38		1-PW-0801
2	50	Copper	KF16	3	57	125	2.38		1-PW-0802
2	15	Nickel	KF16	3	57	125	2.38		1-PW-0803
2	50	Copper	KF40	3	57	125	2.38		1-PW-0804
2	15	Nickel	KF40	3	57	125	2.38		1-PW-0805
4	50	Copper	KF40	3	57	125	2.38		1-PW-0806
4	15	Nickel	KF40	3	57	125	2.38		1-PW-0807

Baseplate configuration available upon request.

Custom lengths and designs available upon request. Please contact our sales office.
