Laser optic fused silica viewports

CF style

Technical information
Type View diameter Size B Part number
780nm Diode Laser 35 CF40 3.30 3-FS-0100-DIO-1.4
780nm Diode Laser 68 CF63 6.35 3-FS-0100-DIO-2.69
1064nm YAG Laser 35 CF40 3.30 3-FS-01-YAG-1.4
1064nm YAG Laser 68 CF63 6.35 3-FS-01-YAG-2.69
193nm ArF Excimer 35 CF40 3.30 3-FS-01-ARF-1.4
193nm ArF Excimer 68 CF63 6.35 3-FS-01-ARF-2.69
248 KrF Excimer 35 CF40 3.30 3-FS-01-KRF-1.4
248 KrF Excimer 68 CF63 6.35 3-FS-01-KRF-2.69
Specifications
Vacuum: 10-11 mbar
Temperature: -100°C to 200°C
Thermal gradient: 20°C/min

Coatings

- V-Coat 780nm R<0.25%

- V-Coat 1064nm R<0.25%

- V-Coat 193nm R<0.25%

- V-Coat 248nm R<0.25%

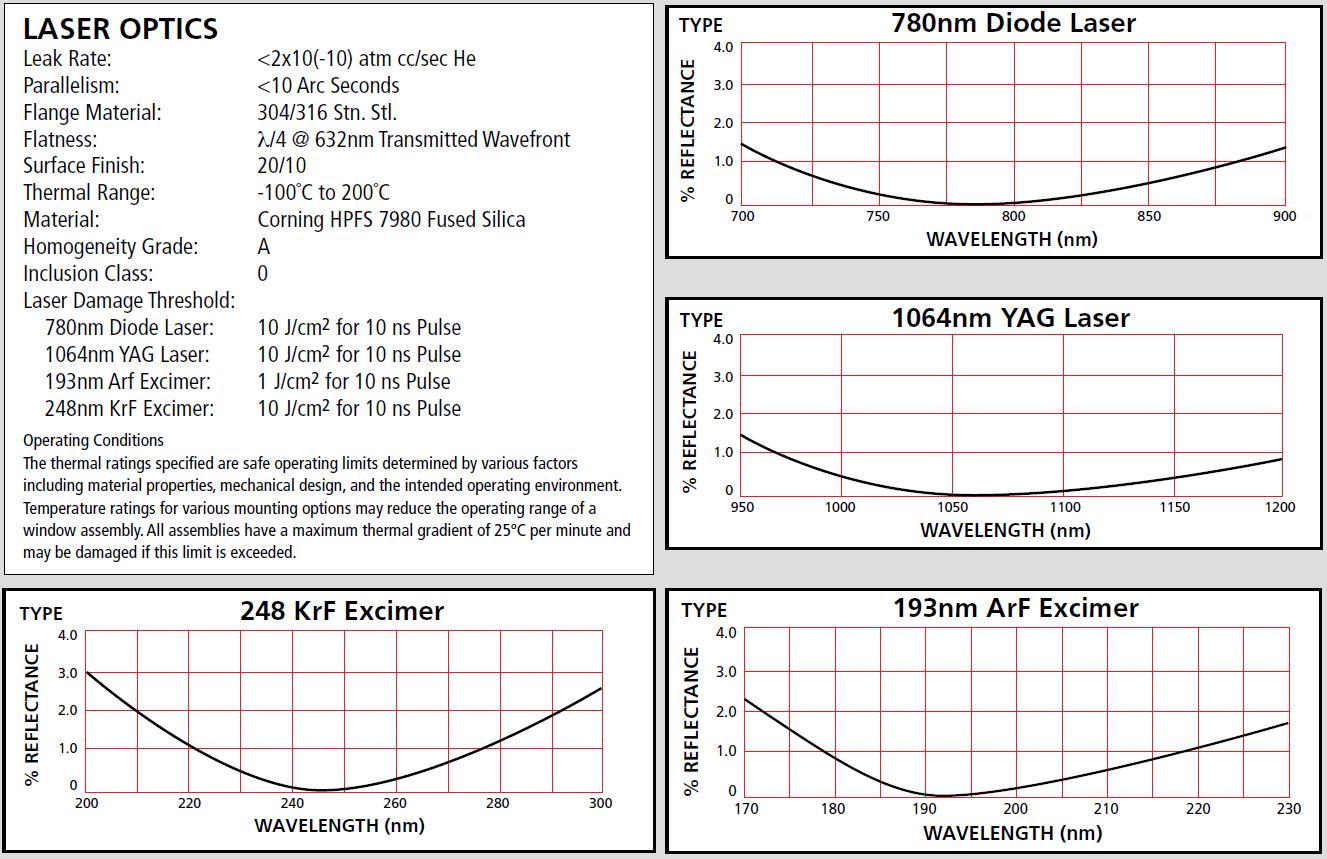

 Laser optic fused silica specifications & wavelengths here

 Annealed copper gaskets should be used with CF types

 Cleaning procedures here

 AISI 316LN flanges available upon request:
