Linear Motion Feedthroughs
Linear motion feedthroughs
Linear feedthrough with DC stepper motor
Speed handle option

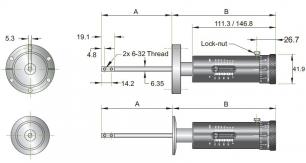

| Size | Fig. | Material | Travel | A min | A max | B max | Part number |
|---|---|---|---|---|---|---|---|
| CF16 | 1 | Stainless steel | 25 mm | 90 | 116 | 140 | 5-LM-0101 |
| CF40 | 1 | Stainless steel | 25 mm | 90 | 116 | 140 | 5-LM-0102 |
| CF16 | 1 | Stainless steel | 50 mm | 90 | 141 | 175 | 5-LM-0103 |
| CF40 | 1 | Stainless steel | 50 mm | 90 | 141 | 175 | 5-LM-0104 |
| CF16 | 1 | Stainless steel | 100 mm | 90 | 192 | 245 | 5-LM-0105 |
| CF40 | 1 | Stainless steel | 100 mm | 90 | 192 | 245 | 5-LM-0106 |
| KF16 | 1 | Stainless steel | 25 mm | 89 | 114 | 141 | 5-LM-0205 |
| KF40 | 1 | Stainless steel | 25 mm | 92 | 117 | 139 | 5-LM-0206 |
| KF16 | 1 | Stainless steel | 50 mm | 89 | 140 | 177 | 5-LM-0207 |
| KF40 | 1 | Stainless steel | 50 mm | 92 | 142 | 174 | 5-LM-0208 |
| KF16 | 1 | Stainless steel | 100 mm | 89 | 190 | 242 | 5-LM-0209 |
| KF40 | 1 | Stainless steel | 100 mm | 92 | 193 | 240 | 5-LM-0210 |
| Speed Handle | 3 | Anodized aluminum | --- | --- | --- | --- | 5-LM-0000-SH |
| Material: | |
|---|---|
| Body: | Stainless steel |
| Housing: | Anodized aluminium |
| Bellow: | AM-350 Edge welded |
| Vacuum: | UHV/HV: 10-11 / 10-8 mbar |
| Temperature: | 250°C |
| Axial load: | 2.3 kg max |
| Lateral load: | 2.3 kg @ 50mm extention max |
| Resolution - Linear scale: | 0.65 mm |
| Resolution - Rotary scale: | 0.02 mm |
Custom design available upon request, please contact our sales office.
Stepper motor actuation available, click here for full details
DC motor actuation available, please click here for full details (Pneumatic option NOT available)
