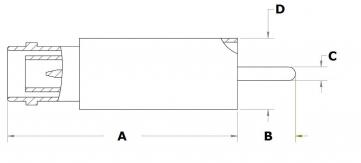

Fig.1

Fig.2

Fig.3

Technical information
Flange	N. pin	Conductor	Fig.	A	B	C	D	P/number

Weld	1	Nickel	1	41	10	2.38	12.57	1-CX-0174
CF16	1	Nickel	2	42	8	2.38		1-CX-0164
CF40	1	Nickel	2	42	8	2.38		1-CX-0165
CF40	2	Nickel	2	42	8	2.38		1-CX-0166
CF40	3	Nickel	2	42	8	2.38		1-CX-0167
CF40	4	Nickel	2	42	8	2.38		1-CX-0168
KF16	1	Nickel	3	43	7	2.38		1-CX-0169
KF40	1	Nickel	3	41	9	2.38		1-CX-0170
KF40	2	Nickel	3	41	9	2.38		1-CX-0171
KF50	3	Nickel	3	41	9	2.38		1-CX-0172
KF50	4	Nickel	3	41	9	2.38		1-CX-0173

Air side connector included

In-vacuum connectors & cables available

Baseplate version available upon request

Custom configuration available upon request. Please contact our sales office.
