Liquid breaks

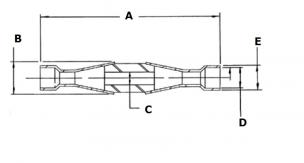

Fig.1
Fig.2
| Adapter material | Voltage | A | B | C | D | E | P/number |
|---|---|---|---|---|---|---|---|
| Copper | 5 kV DC | 76 | 15 | 5.33 | 6.47 | 8.12 | 1-BE-0869 |
| Copper | 5 kV DC | 76 | 15 | 6.35 | 9.65 | 11.17 | 1-BE-0870 |
| Copper | 5 kV DC | 76 | 15 | 10.41 | 12.82 | 14.98 | 1-BE-0871 |
| Voltage: | 5kV DC |
|---|---|
| Material: | Copper |
| Insulation: | Alumina ceramic |
| Temperature range: | 0°C to 250°C |
Brazeable
Coolant fluid lines often require an electrical break. Installation of liquid breaks into a transmission line for coolant fluid requires soldering or low temperature brazing (below 700°C). Standard adapters fit 6.5mm to 12.7mm diameter tubes.
