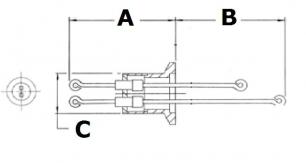

Fig.1

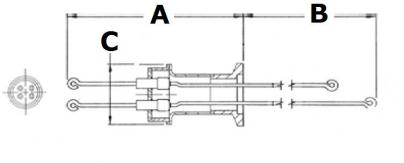

Fig.2

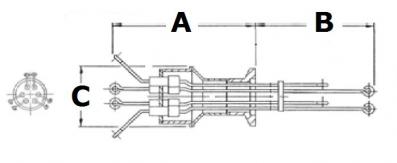

Fig.3

Technical information
Pairs	Type	Flange	Fig.	A	B	C	P/number

1	R-S	KF16	1	53.3	101.6	19.0	1-TC-0430
1	N	KF16	1	53.3	101.6	19.0
1	T	KF16	1	53.3	101.6	19.0	1-TC-0426

2	R-S	KF16	2	72.4	101.6	28.4	1-TC-0365
2	N	KF16	2	72.4	101.6	28.4
2	T	KF16	2	72.4	101.6	28.4	1-TC-0366

3	R-S	KF16	3	71.4	101.6	31.7	1-TC-0429
3	N	KF16	3	71.4	101.6	31.7
3	T	KF16	3	71.4	101.6	31.7	1-TC-0443

Thermocouple table click here

Air & vacuum side connectors included

Custom versions available on request
