Fig.1 Manual rotary feedthrough

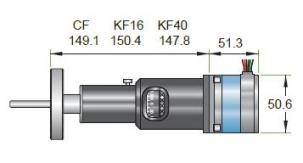

Fig.2 Stepper motor rotary feedthrough
Fig.3 Pneumatic rotary feedthrough
Size | Fig. | Material | A | B | Part number |
---|---|---|---|---|---|
CF16 | 1 | Stainless steel | 40 | 106 | 5-RM-0301 |
CF40 | 1 | Stainless steel | 40 | 106 | 5-RM-0302 |
KF16 | 1 | Stainless steel | 39 | 107 | 5-RM-0403 |
KF40 | 1 | Stainless steel | 42 | 105 | 5-RM-0404 |
Material: | |
---|---|
Body: | Stainless steel |
Housing: | Aluminium |
Bellow: | AM-350 Edge welded |
Vacuum: | UHV/HV: 10-11 / 10-8 mbar |
Temperature: | 250°C |
Torque: | 0.4 Nm |
Axial load: | 2.7 kg max |
Lateral load: | 4.5 kg max |
Speed: | 1000 rpm |
Resolution scale: | 5° |
Custom design available upon request, please contact our sales office.
Stepper motor actuation available, click here for full details
AC & Pneumatic actuation available, please click here for full details
