CF style
Differentially pumped viewport
Size | B | C | D | Part number |
---|---|---|---|---|
CF40 | 24 | 1/8" male VCR | 24 | 3-DP-0100 |
CF40 | 24 | 1/8" female VCR | 24 | 3-DP-0101 |
CF40 | 24 | CF16 | 24 | 3-DP-0102 |
CF40 | 24 | no termination | 24 | 3-DP-0103 |
CF63 | 48 | 1/4" male VCR | 43 | 3-DP-0104 |
CF63 | 48 | 1/4" female VCR | 43 | 3-DP-0105 |
CF63 | 48 | CF16 | 43 | 3-DP-0106 |
CF63 | 48 | No termination | 43 | 3-DP-0107 |
Vacuum: | 10-11 mbar |
---|---|
Temperature: | 200°C |
Thermal gradient: | 25°C/min |

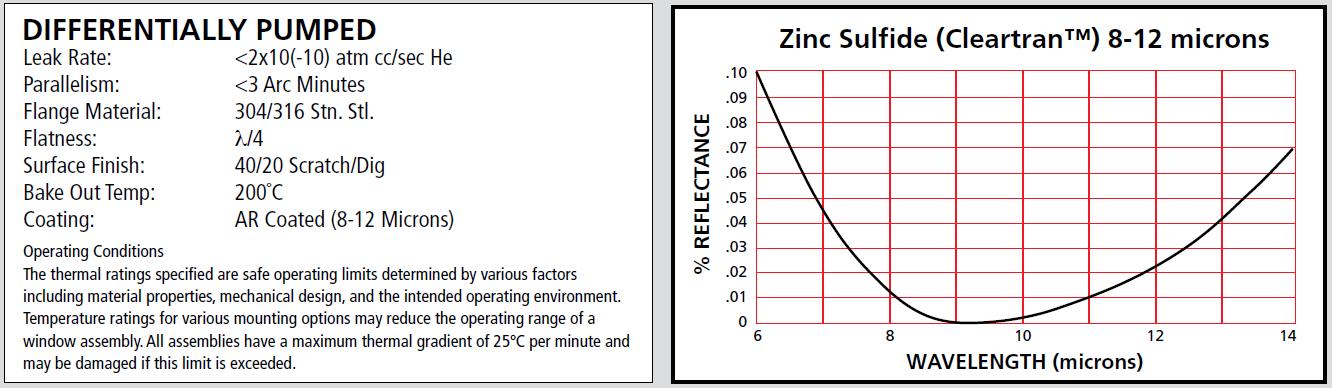

Differentially pumped specifications & wavelength here
AISI 316LN flanges available upon request
