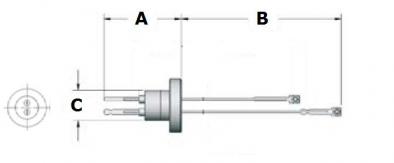

Fig.1

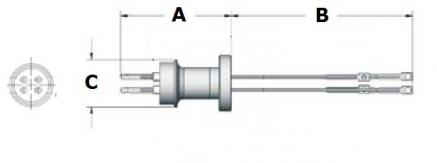

Fig.2

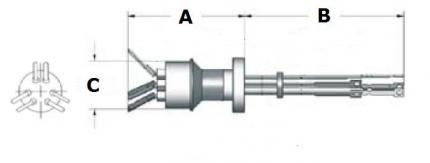

Fig.3

Technical information
Pairs	Type	Flange	Fig.	A	B	C	P/number

1	C	CF16	1	47.0	101.6	19.0	1-TC-0300
1	E	CF16	1	47.0	101.6	19.0	1-TC-0301
1	J	CF16	1	47.0	101.6	19.0	1-TC-0302
1	K	CF16	1	47.0	101.6	19.0	1-TC-0303

2	C	CF16	2	65.3	106.7	28.7	1-TC-0312
2	E	CF16	2	65.3	106.7	28.7	1-TC-0313
2	J	CF16	2	65.3	106.7	28.7	1-TC-0314
2	K	CF16	2	65.3	106.7	28.7	1-TC-0315

3	C	CF16	3	70.6	101.6	31.7	1-TC-0324
3	E	CF16	3	70.6	101.6	31.7	1-TC-0325
3	J	CF16	3	70.6	101.6	31.7	1-TC-0326
3	K	CF16	3	70.6	101.6	31.7	1-TC-0327

1	C	CF40	1	47.0	101.6	19.0	1-TC-0606
1	E	CF40	1	47.0	101.6	19.0	1-TC-0607
1	J	CF40	1	47.0	101.6	19.0	1-TC-0608
1	K	CF40	1	47.0	101.6	19.0	S1-TC-0303-CF40

2	C	CF40	2	65.3	106.7	28.7	1-TC-0610
2	E	CF40	2	65.3	106.7	28.7	1-TC-0611
2	J	CF40	2	65.3	106.7	28.7	1-TC-0612
2	K	CF40	2	65.3	106.7	28.7	S1-TC-0315

3	C	CF40	3	70.6	101.6	31.7	1-TC-0613
3	E	CF40	3	70.6	101.6	31.7	1-TC-0614
3	J	CF40	3	70.6	101.6	31.7	1-TC-0615
3	K	CF40	3	70.6	101.6	31.7	S1-TC-0335

Thermocouple table click here

Air & vacuum side connectors included

Custom versions available on request
