Magnetic Transporter

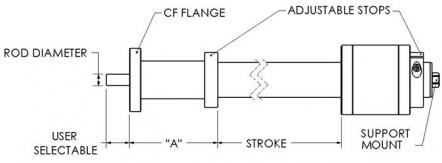

Fig.1

Fig.2

Technical information
Flange Stroke (mm) A (mm) Termination P/number
CF40 300 125 M6 5-MT-0101
CF40 450 125 M6 5-MT-0104
CF40 600 125 M6 5-MT-0102
CF40 750 125 M6 5-MT-0107
CF40 900 125 M6 5-MT-0103
Specifications
Axial force: 50 N
Max Torque 2.2 Nm
Vacuum range: 1x10-11 mbar
Bakeout temperature: 300°C

 Custom stroke available upon request. Please contact our sales office.

 Guided version available upon request. Please contact our sales office.

The series of magnetically-coupled rotary-linear motion feedthroughs offer exceptional value and performance. The design uses high-strength rare earth magnets in a compact mounting body to actuate a rotating and sliding rod inside vacuum. The inside traveler is magnetically permeable but no magnets are inside vacuum.

  • Robust, easy-to-adjust stops are provided to limit linear motion
  • An engraved dial allows precision control of angular rotation (optional)
  • Years of trouble-free service
  • A variety of end tools are available for different jobs
  • Custom sample holders can be installed or changed in minutes (optionals)
  • The actuators are easy to remove for bakeout up to 200°C
  • Available for UHV with all metal ball bearings
