Deep UV fused silica viewports
Fig.1 CF flange style
Fig.2 Weldable style

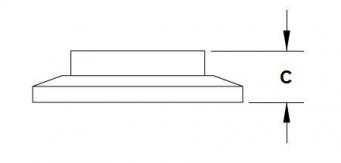

Fig.3 ISO-K vflange style
| Size | View diameter | B | C | F | G | Fig. | Part number |
|---|---|---|---|---|---|---|---|
| CF16 | 16 | 2.54 | 1 | 3-FS-0122 | |||
| CF40 | 35 | 3.30 | 1 | 3-FS-0108 | |||
| CF63 | 68 | 6.35 | 1 | 3-FS-0110 | |||
| CF100 | 98 | 6.35 | 1 | 3-FS-0112 | |||
| CF160 | 137 | 6.35 | 1 | 3-FS-0114 | |||
| CF200 | 137 | 6.35 | 1 | 3-FS-0115 | |||
| Weldable | 35 | 3.30 | 44.70 | 38.10 | 1.65 | 2 | 3-FS-0125 |
| Weldable | 60 | 6.35 | 73.15 | 63.50 | 1.65 | 2 | 3-FS-0124 |
| Weldable | 98 | 6.35 | 112.01 | 114.30 | 1.65 | 2 | 3-FS-0126 |
| KF25 | 16 | 9.90 | 3 | 3-FS-0127 | |||
| KF40 | 35 | 13.70 | 3 | 3-FS-0128 | |||
| KF50 | 35 | 15.75 | 3 | 3-FS-0129 |
| Vacuum: | 10-11 mbar |
|---|---|
| Temperature: | -100°C to 200°C (150°C for Iso flanges) |
| Thermal gradient: | 20°C/min |

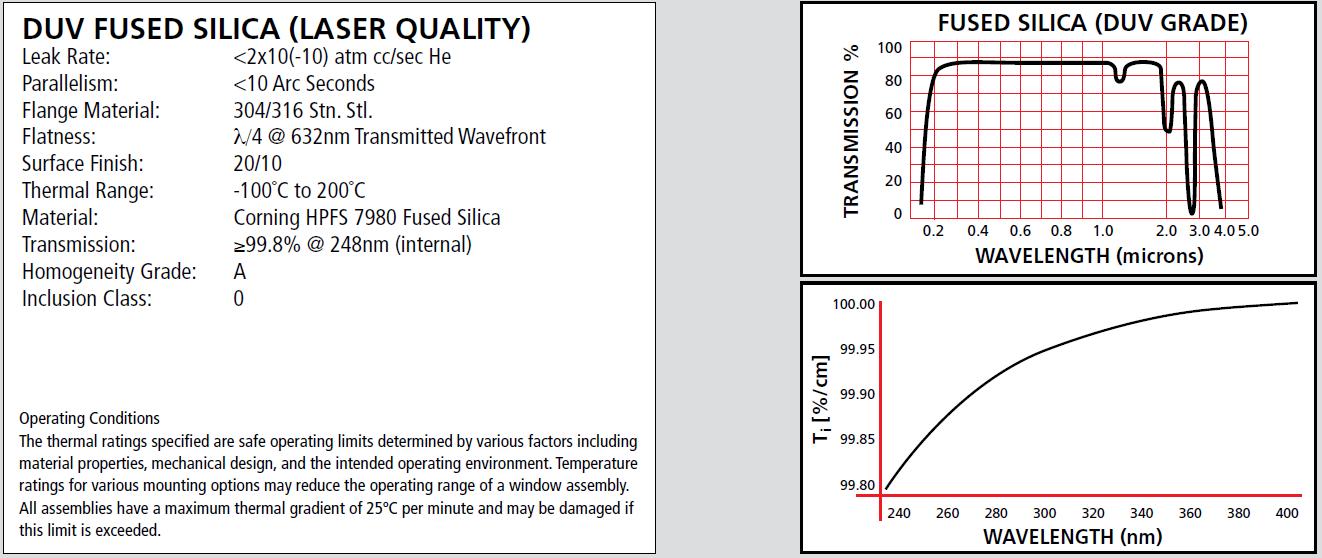

Deep UV specifications & wavelength here
Annealed copper gaskets should be used with CF types
Cleaning procedures here
AR coating on single or both sides available, please contact our sales office
AISI 316LN flanges available upon request
