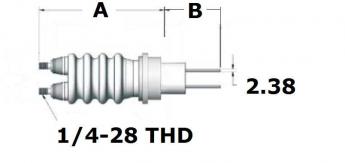

Fig.1

Fig.2

Fig.3

Technical information
N. pin	Volts	Amps	Conductor	Flange	Fig.	A	B	D	P/number

1	20 kV	180	Copper	Weld	1.a	71	88	38.10	1-PW-0610
1	20 kV	55	Nickel	Weld	1.a	71	88	38.10	1-PW-0611
1	20 kV	150	Copper	Weld	1.b	71	88	38.10
1	20 kV	50	Nickel	Weld	1.b	71	88	38.10
2	20kV	7	Stn. Stl	Weld	2	103	46	38.10	1-PW-0816
2	30kV	50	Copper	Weld	2	103	46	38.10
3	30kV	50	Copper	Weld	2	102	60	38.10
3	30kV	3	Stn. Stl	Weld	2	102	60	38.10

1	20 kV	180	Copper	CF40	3.a	94	90		1-PW-0608
1	20 kV	55	Nickel	CF40	3.a	94	90		1-PW-0609
1	20 kV	150	Copper	CF40	3.a	97	87
1	20 kV	50	Nickel	CF40	3.a	97	87
2	20kV	7	Stn. Stl	CF40	3.b	103	59
2	30kV	50	Copper	CF40	3.b	103	59		1-PW-0817
3	30kV	50	Copper	CF40	3.b	102	60

Custom lengths and designs available upon request. Please contact our sales office.
